For AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models

ন্যূনতম চাহিদার পরিমাণ : 1 মূল্য : USD 550~700
প্যাকেজিং বিবরণ : শক্ত কাগজের বাক্স ডেলিভারি সময় : 7 ~ 15 কার্যদিবস
পরিশোধের শর্ত : টি/টি, পেপাল, ওয়েস্টার্ন ইউনিয়ন, আলিপে যোগানের ক্ষমতা : 1000 সেট/মাস
উৎপত্তি স্থল: চীন পরিচিতিমুলক নাম: AIRMEXT
সাক্ষ্যদান: ISO9001 মডেল নম্বার: SN X5 V3

বিস্তারিত তথ্য

ব্র্যান্ড: এয়ারমেক্সট আইটেমের নাম: এয়ার সাসপেনশন কন্ট্রোলার/এয়ার ম্যানেজমেন্ট
গাড়ির ফিটমেন্ট: ইউনিভার্সাল/সব গাড়ির মডেল প্রয়োগ: এয়ার সাসপেনিসন
টাইপ: গ্যাস-ভরা গুণমান নিয়ন্ত্রণ: 100% পরিদর্শন করা হয়েছে
সমস্ত আনুষাঙ্গিক অন্তর্ভুক্ত: হ্যাঁ ওয়ারেন্টি: 12 মাস
ই এম: লোগো ওজন: 26 কেজি
প্যাকিং: নিরপেক্ষ প্যাকিং বাক্স ডেলিভারি সময়: 7-15 দিন
রঙ: নীল উৎপত্তি স্থল: শি'আন চীন
ভোল্টেজ: DC-12V

পণ্যের বর্ণনা

Product Name:


AIRMEXT Top Grade V3 air management kit


Type No:

SN X5 V3 (Blue)


---Electronically controlled air suspension system, also known as the control unit is the core part of the air suspension system and electric control system has the versatility, can be applied to all models, electronic control system for the button panel , wireless remote control lift, have both before and after lifting function, supporting ECU to control computer, key-press panel and ECU, the ECU and solenoid valve only need a cable to plug connection between line, wiring simple. Want to know detailed content can also be the message consulting with businesses.
For AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models 0

------DETAILS DISPLAY------

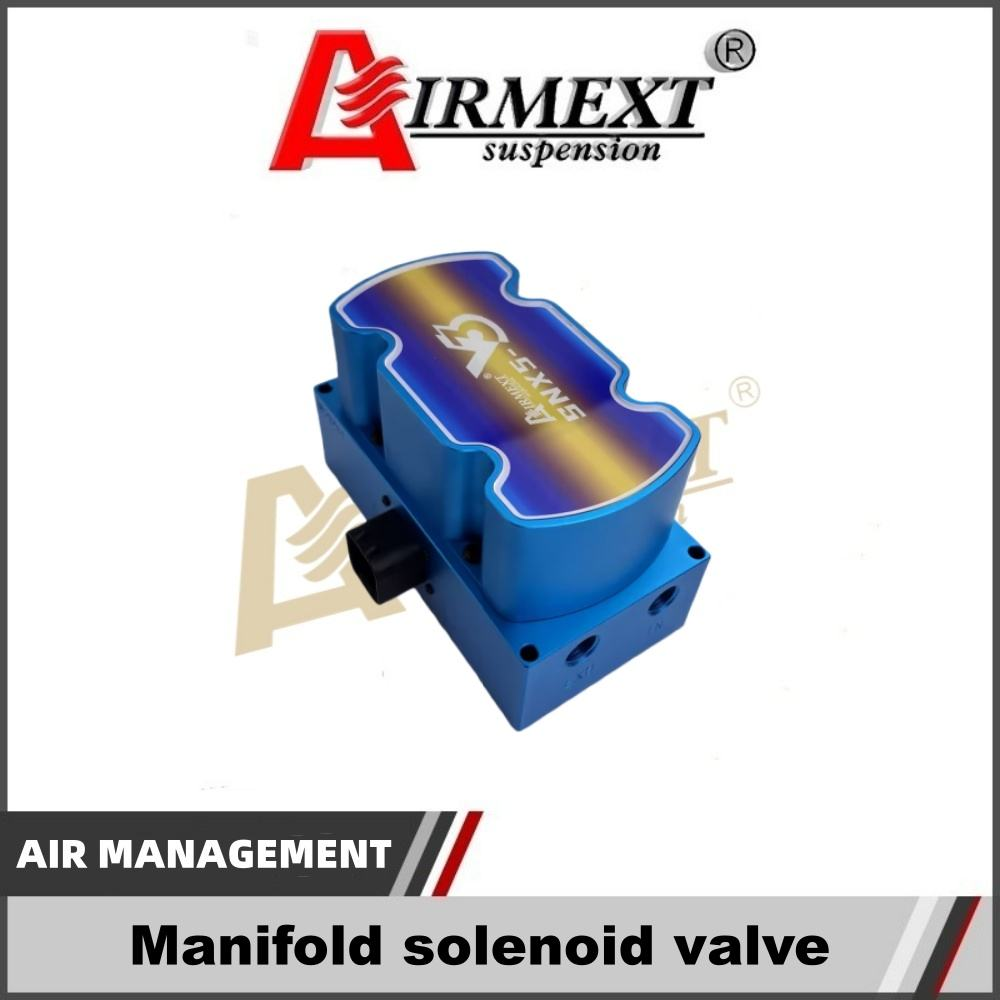

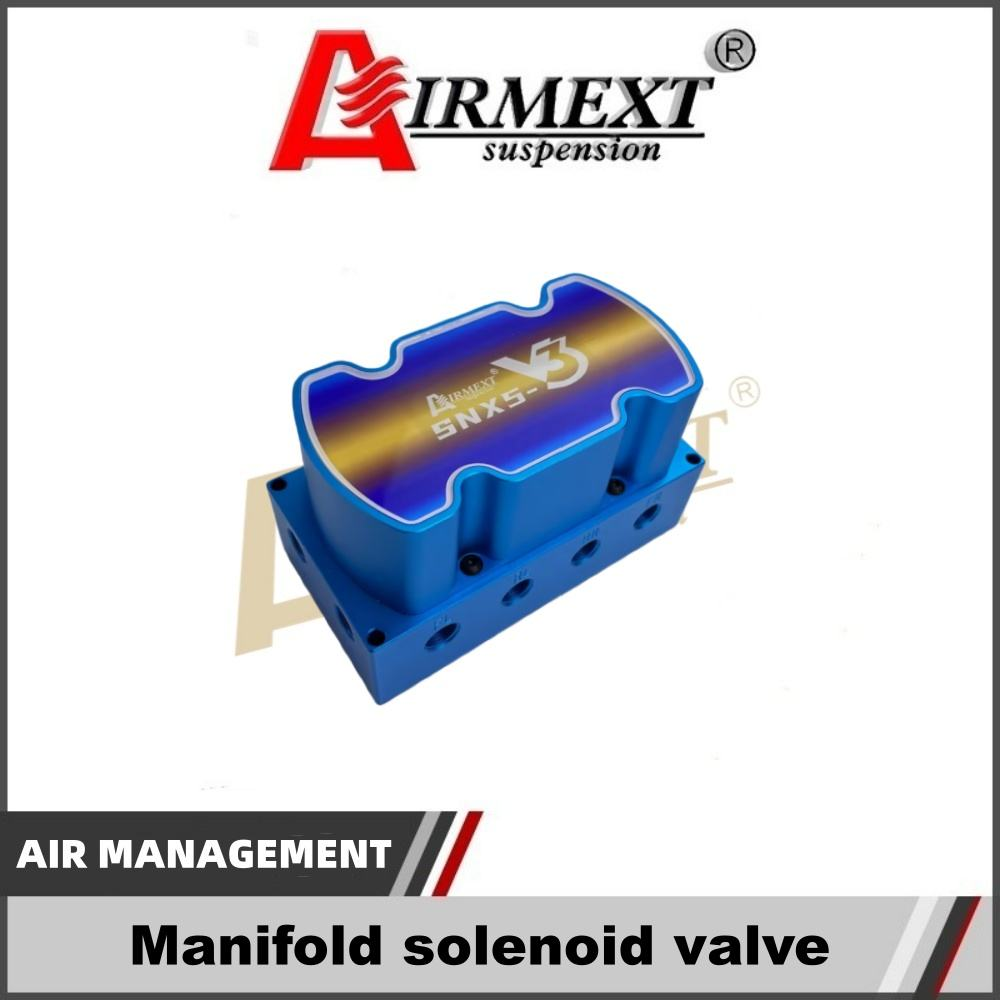

AIRMEXT SN X5 V3- MANIFOLD SOLENOID VALVE
For AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models 1For AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models 2

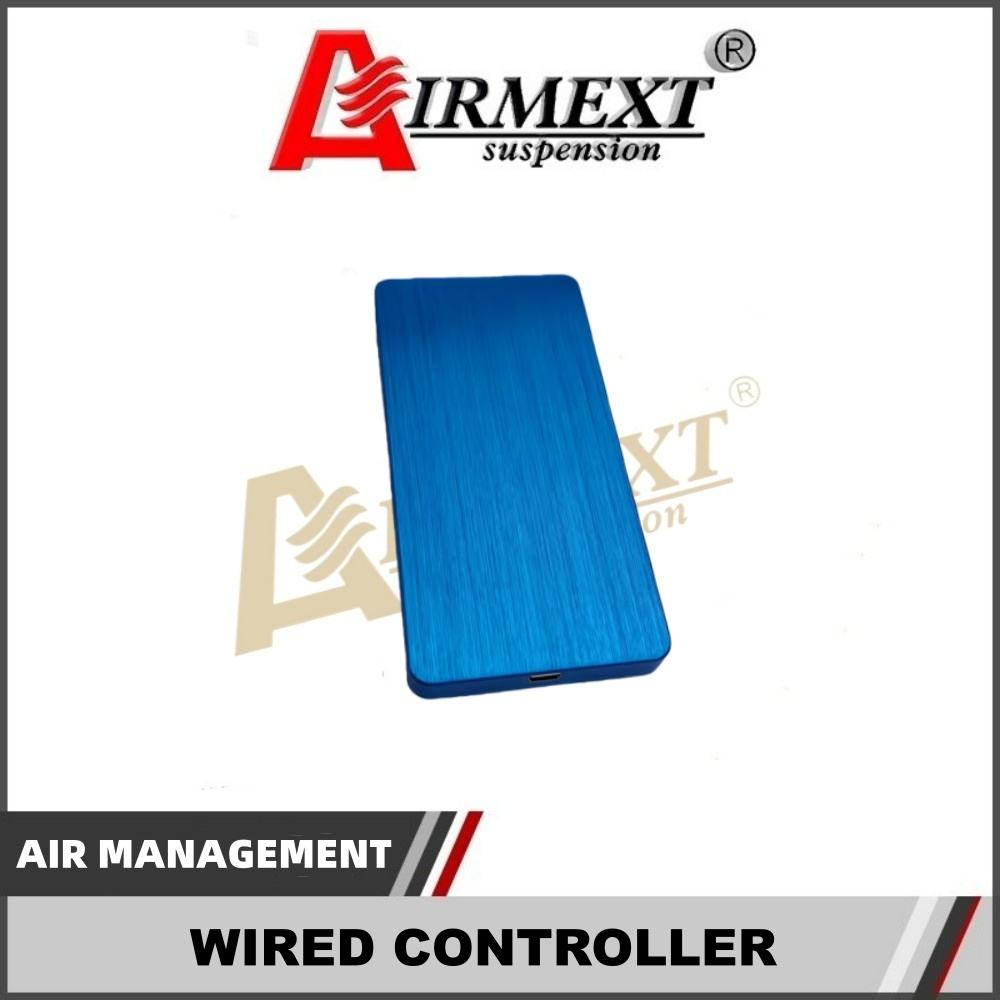

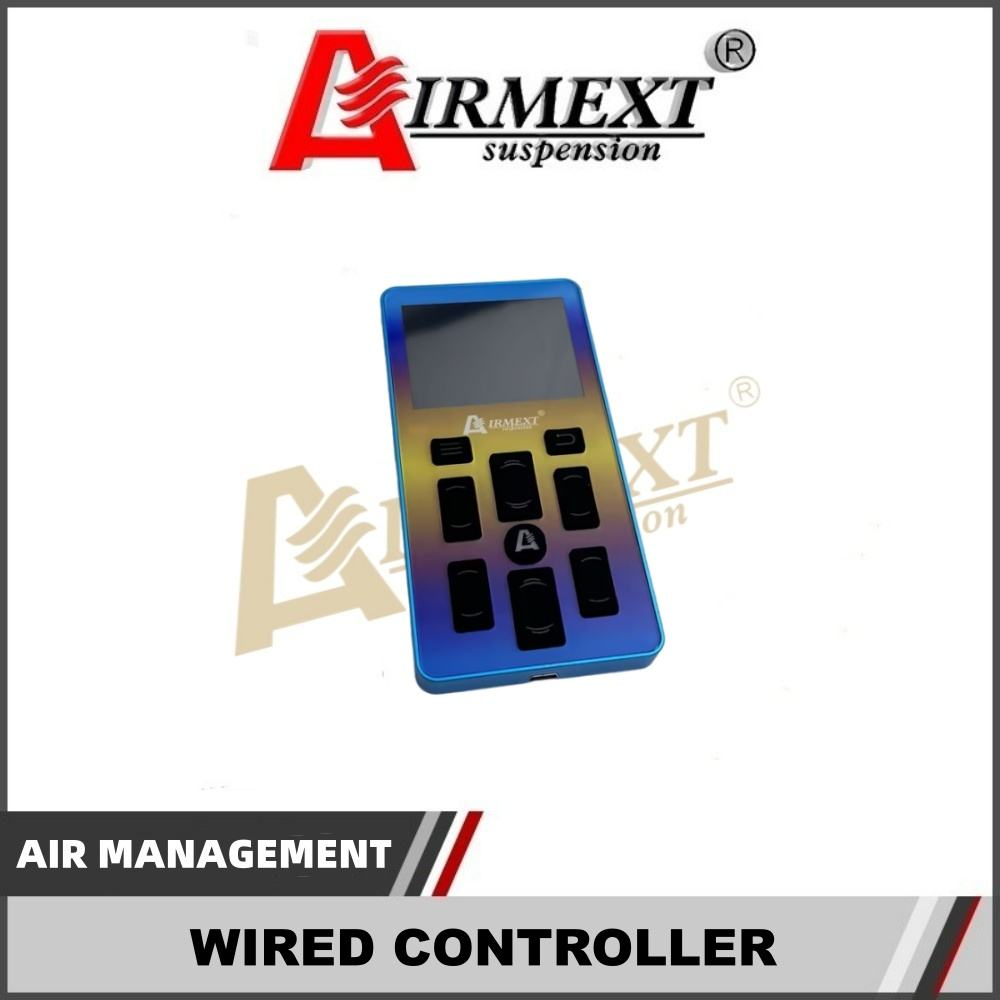

AIRMEXT SN X5 V3-WIRED CONTROLLER PANEL
For AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models 3
For AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models 4

--------------FEATURES--------------------
1.Manifold valve Backlight adjustable (RED,GREEN, BLUE,PURPLE)

2. Wired controller backlight changable (RED,GREEN,BLUE)

3.V3 APP with 3 kinds of skin (background) swicthable




4.plug and play, very easy to connect

5.pressure switch bulit-in (in manifold solenoid valve)

6.Already fix all bug and updated software, super stable

7.Better material quality (silicon chip ,valve etc)

8: air tank pressure can be pre-set:
----The working setting of the air pump: when the pressure value of the air tank is lower than the start set value, the air pump starts to work; conversely, when the pressure value of the air tank is higher than the stop set value, the air pump stops working.

9:Acrylic panel is nicer than alloy aluminum cover , and better signal reception capability

10. 5-level preset, MORE accurate memory value and precise adjustment

For more details and Demo, pls followus on INSTAGRAM: airmext_airsuspension_official




---- Four wheels independently controlled (RISE/DROP)

* Front 2 wheels Rise/Drop at same time

* Rear 2 wheels Rise/Drop at same time

* 4 Wheels Rise/Drop at same time



-----Four wheels Slightly adjustable



---- wired controller, wireless controller (optional)



----Cellphone APP control (IOS and Android available)



----12kinds of language available :Chinese, Traditional Chinese,English, Japanese,Spainish,French,Thai,Korean,Russian,Dutch,Arabic,German



---- 5-Level height memory preseted /adjustable



----Password changable



---- Long press up/down button to the end



---- LED Display for Pressure (PSI)



Display precision : up to 1 PSI

Memory accuracy: up to 3 PSI



---- Automatical Security Checking & Adjusting



---- Whole stroke of car body RISE/ DROP (5.9’’)

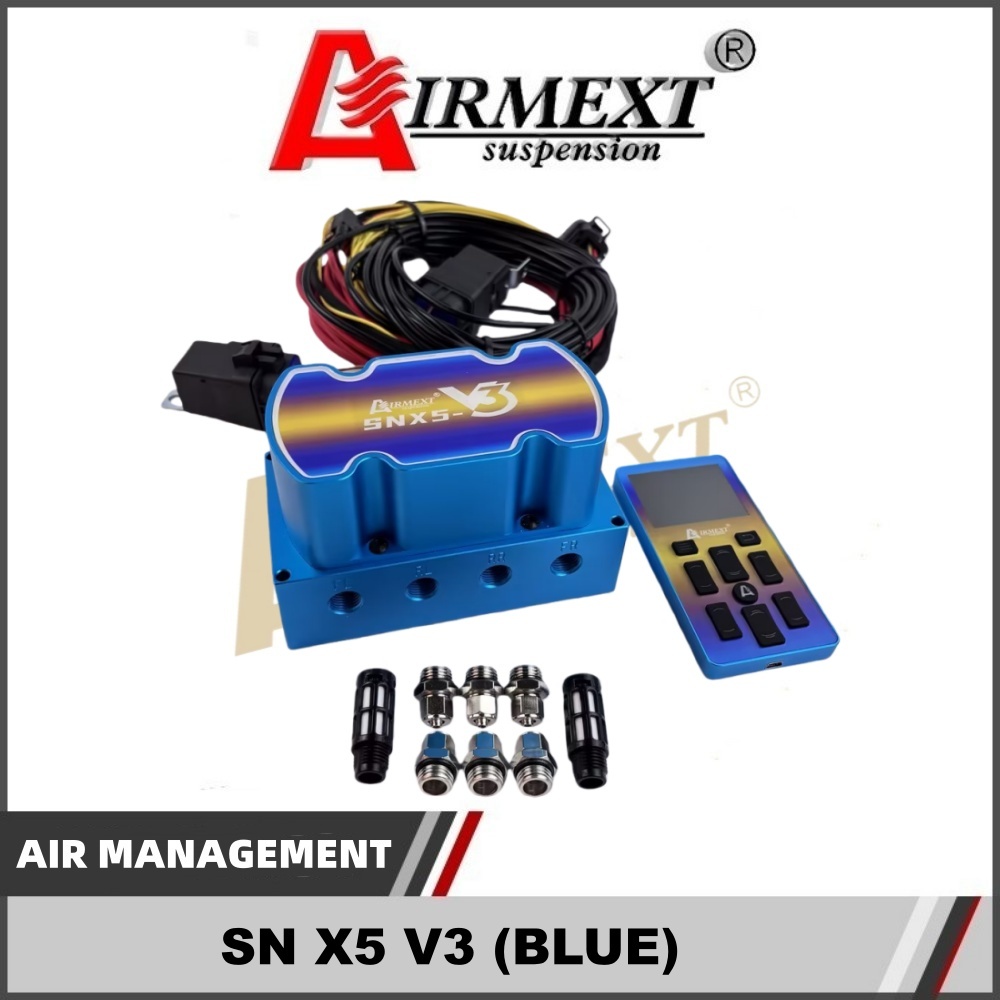

CONFIGURATION LIST:



1, AIRMEXT wired controller *1 piece




2.Manifold solenoid Valve * 1 piece




3.cable /wiring harness + air fittings&connectors: 1 set




4. Instruction Manual : 1 piece


Packaging & Shipping



AIRMEXT SN X5 (V3)---PACKING BOX (LEFT is V3, right is V2)
For AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models 5
AIRMEXT SN X5 (V3)---Modeling display

For AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models 6For AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models 7For AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models 8

NEW APP for SN X5 for APP Store and Google Play ,OR download at our official website, coming soon on around May 30

Features for V3 APP:

3 skin (background) switchable, 12 kinds of language changableFor AIRMEXT/SN X5 V3 (Blue)/air Management Top Grade Air Suspension System Electronic Control System/Controller for All Car Models 9
